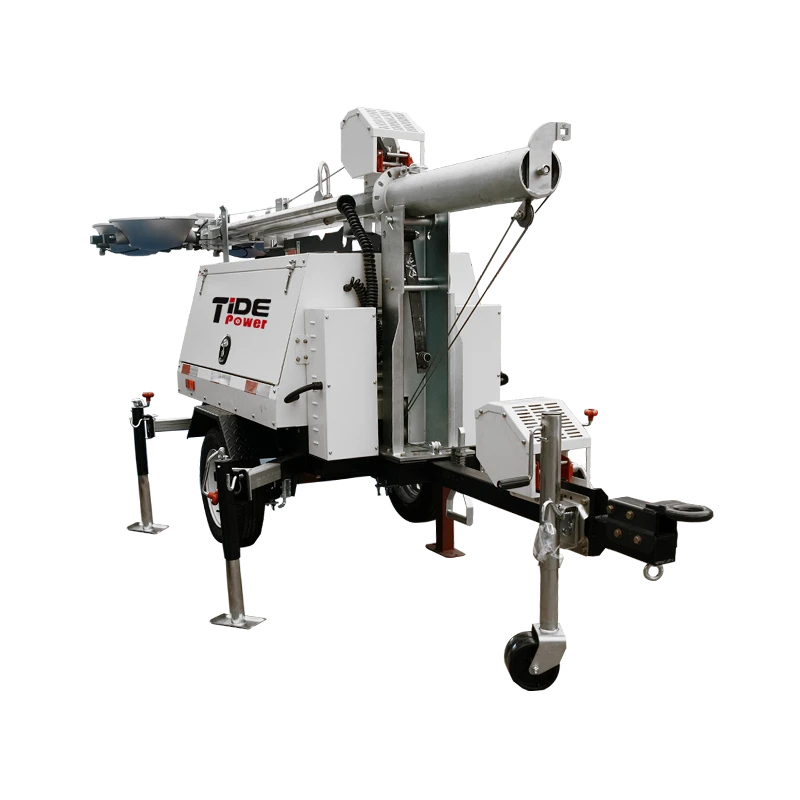

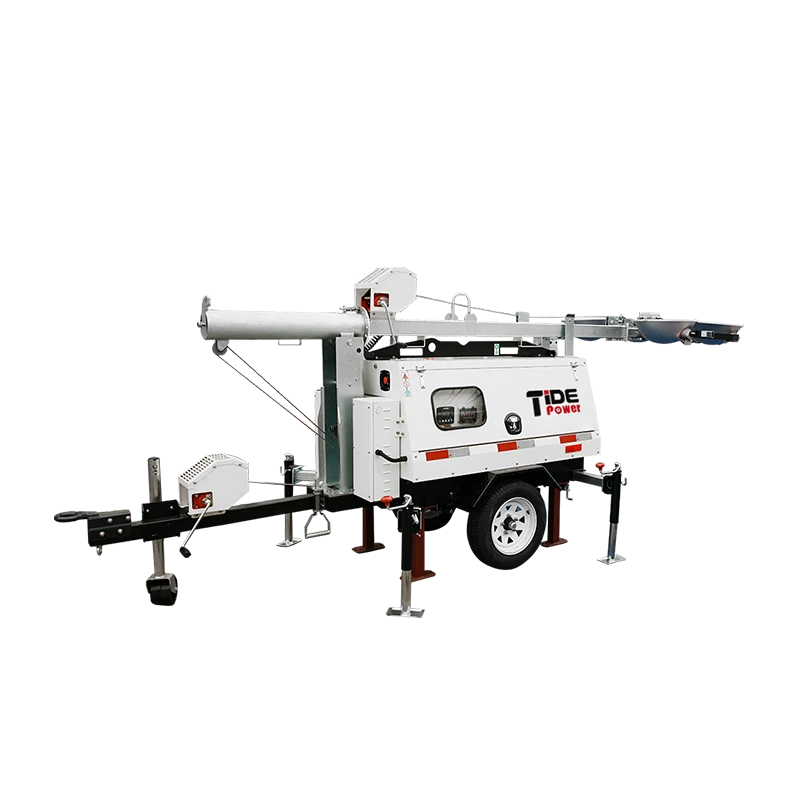

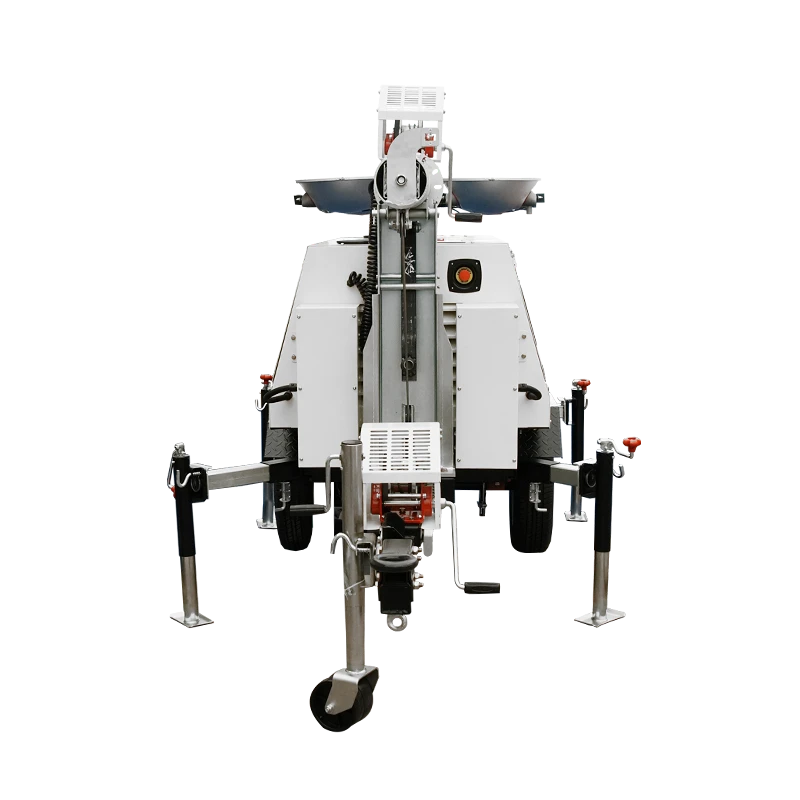

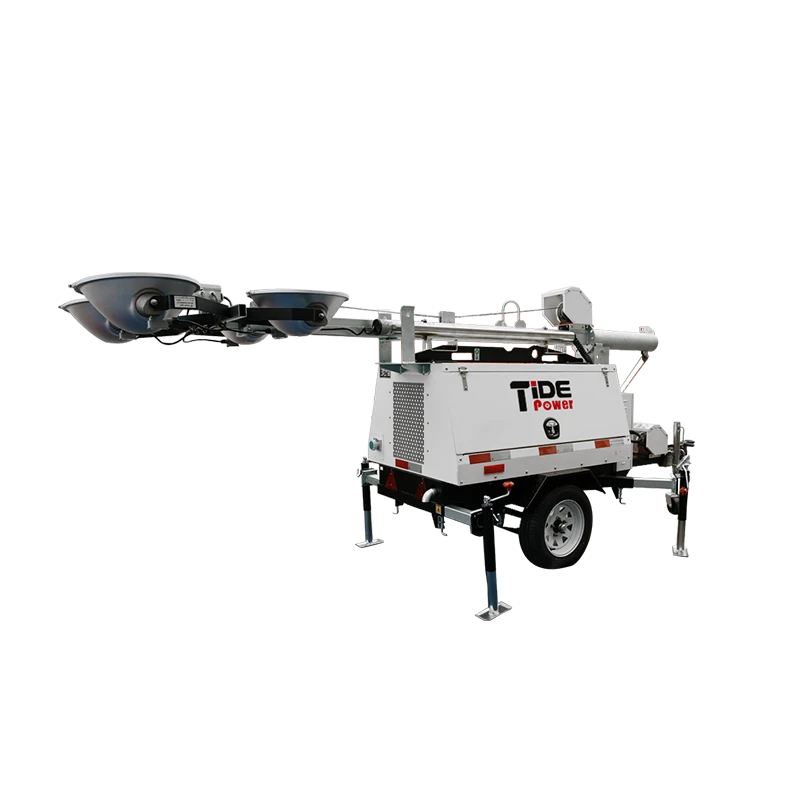

Horizontal Mast Lighting Tower

Name: Horizontal Mast Lighting Tower
Brand: Tide Power Technology Co., Limited.
Availability: PreOrder

Rated Power: 2.4–10 kW (Metal Halide Lamps Optional)Lamp Power: 4 × 350W LED / Metal Halide Lamps (Optional)Product Model: LM104LD-S / LP311EG1

Request a Quote

Product details

Product Description

Key Specifications

Rated Power	2.4–10 kW (Metal Halide Lamps Optional)
Lamp Power	4 × 350W LED / Metal Halide Lamps (Optional)
Product Model	LM104LD-S / LP311EG1

Overview

The Manual Mast Lighting Tower with horizontal mast option is designed for applications requiring wide-angle horizontal illumination. Built with a sturdy steel structure and corrosion-resistant stainless steel fasteners, it features a horizontally deployable mast for broad lateral lighting coverage. The mast is manually operated with a hand-crank mechanism, offering simple operation without the need for a hydraulic system, resulting in lower maintenance costs. Metal halide lamps are available as an option for applications requiring higher brightness and stronger penetration. Ideal for tunnels, bridges, road construction, and large equipment maintenance where horizontal lighting is essential.

The unit operates reliably in temperatures ranging from -25°C to 50°C. Equipped with a 120L fuel tank, it provides up to 120 hours of continuous lighting on a full tank. When deployed, the horizontal mast enables 180° wide-angle illumination from 4×350W LED lamps, covering a width of over 30 meters to meet large-area horizontal lighting requirements. When equipped with optional metal halide lamps, the power range is 2.4–10 kW, delivering enhanced brightness and penetration.

The core advantages of the Manual Mast Lighting Tower with horizontal mast lie in its horizontally deployable mast for wide-angle illumination, ideal for tunnels and bridges; hand-crank mast design for simple operation and low maintenance; high-strength steel structure with stainless steel fasteners for corrosion resistance; optional metal halide lamps for high-brightness and high-penetration lighting; and 4×350W LED lamps with high brightness and long service life.

Benifits

•

Horizontal Mast Design

The mast deploys horizontally, delivering 180° wide-angle illumination with a coverage width of over 30 meters, ideal for tunnels, bridges, and long-distance horizontal work zones.

•

Hand-Crank Mast, Easy Operation

The mast is operated with a hand-crank mechanism, eliminating the need for a hydraulic system. Simple and reliable design results in lower maintenance costs, suitable for frequent lifting applications.

•

High Durability

50,000-hour LED lamp life ensures long-term operation, reducing replacement frequency and maintenance costs.

•

Flexible Options, High-Brightness Illumination

Optional metal halide lamps are available with a power range of 2.4–10 kW, delivering higher brightness and stronger penetration for specialized lighting requirements.

•

Long Runtime

Up to 120 hours of continuous lighting with a 120L fuel tank, reducing refueling frequency.

Inquiry / Message

FAQ

What is the difference between the horizontal mast and vertical mast options?

The horizontal mast deploys laterally for wide-angle illumination, ideal for tunnels, bridges, and long-distance horizontal work zones. The vertical mast lifts vertically for large-area coverage, suitable for open sites such as mining and construction sites.

How is the mast operated?

The mast is operated with a hand-crank mechanism, offering simple and reliable operation without the need for a hydraulic system, resulting in lower maintenance costs.

Can metal halide lamps be selected as an option?

Yes. Metal halide lamps are available as an option with a power range of 2.4–10 kW, delivering higher brightness and stronger penetration for applications requiring enhanced illumination intensity.

What is the operating temperature range?

The unit operates reliably from -25°C to 50°C, adapting to a wide range of climatic conditions.

What is the fuel tank capacity and runtime?

The unit is equipped with a 120L fuel tank, providing up to 120 hours of continuous lighting on a full tank.
